B8 & BX8 Glass Fiber Optic Cable, 1/8" (3.1mm) Active Fiber Bundle

Flexible, single fiber optic light guide cable assemblies.  B8 type have a PVC-Monocoil sheathing which is smooth and easy to clean. BX8 type have a flexible stainless steel sheathing that is super strong and will hold up to high temperature applications.

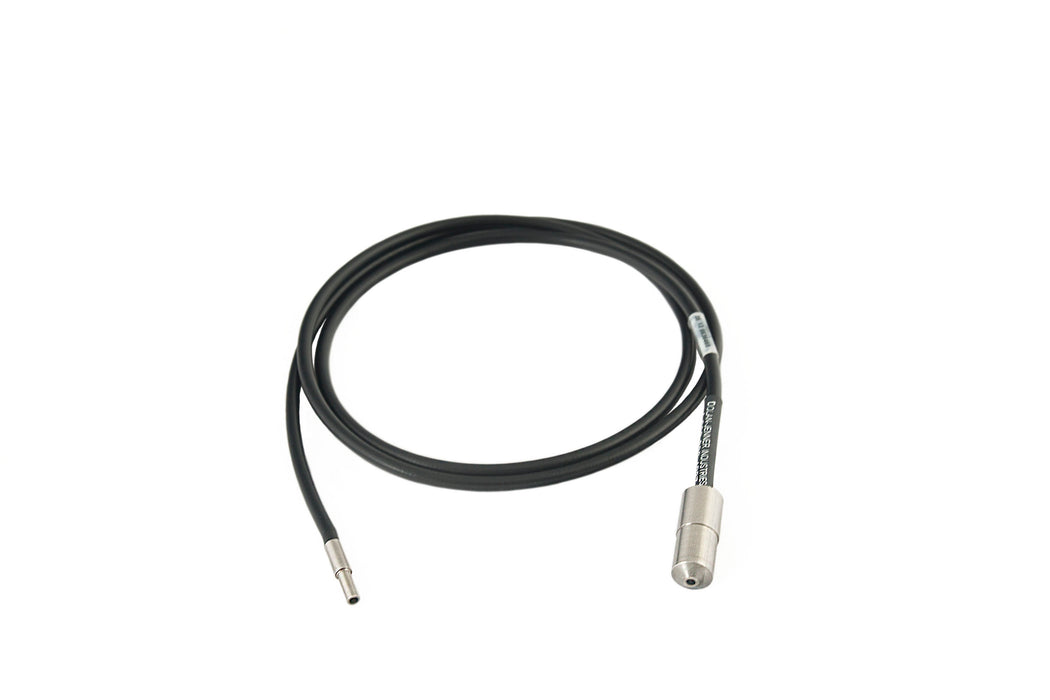

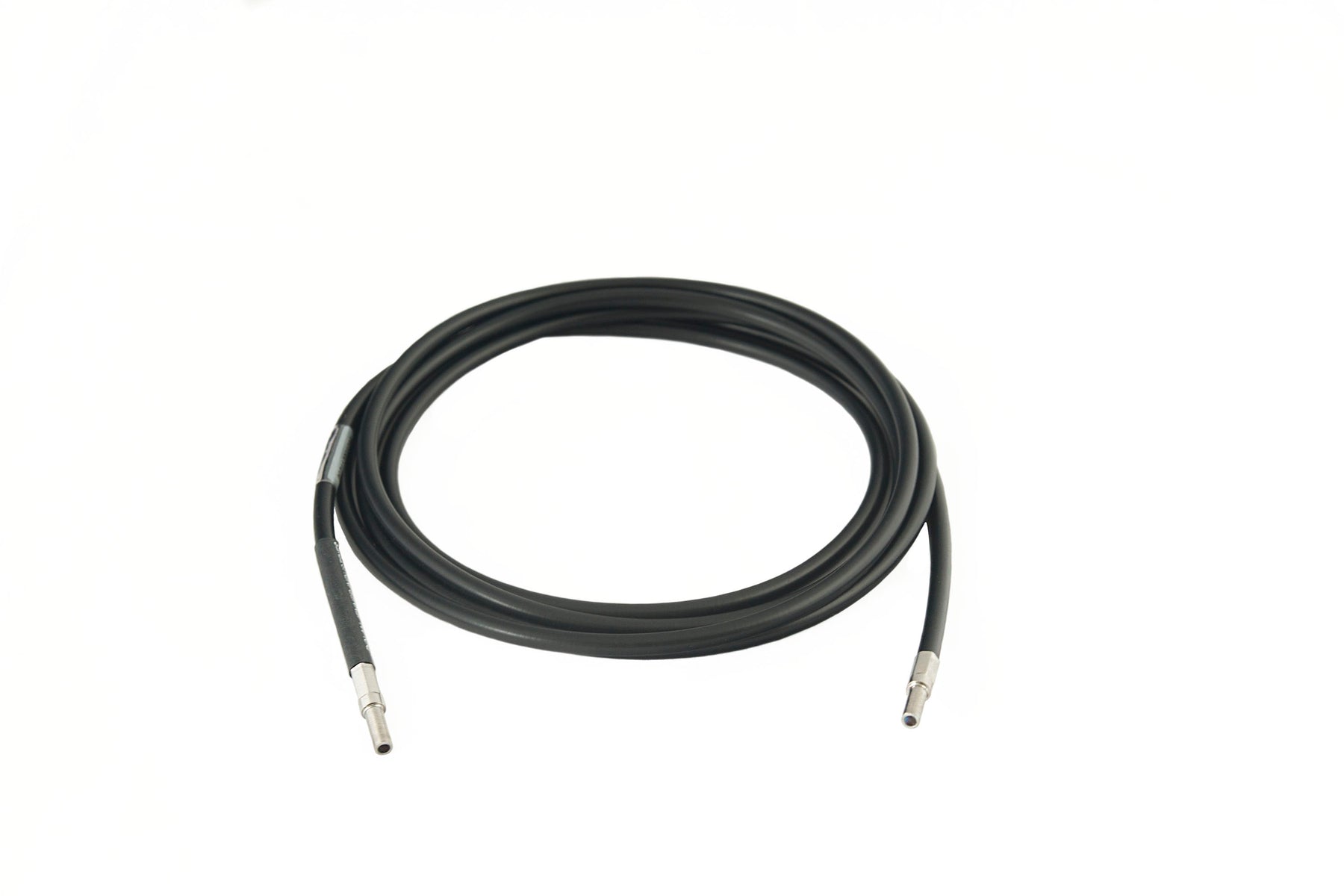

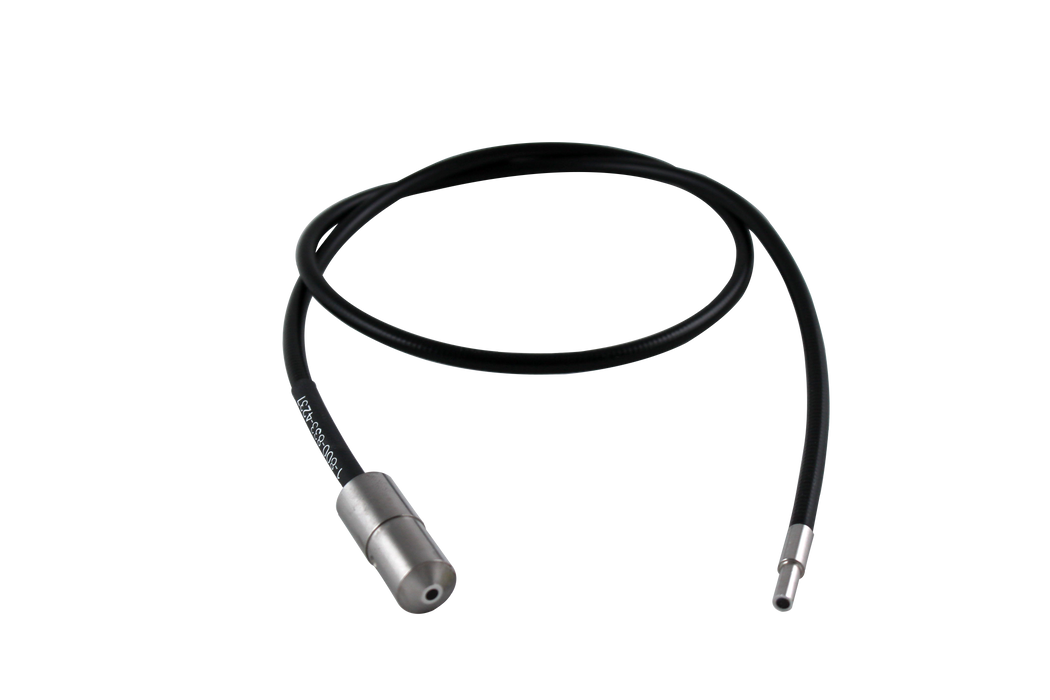

• "B8" Type designates Single flexible cable assembly, PVC sheathing, .125 diameter bundle of fiber.

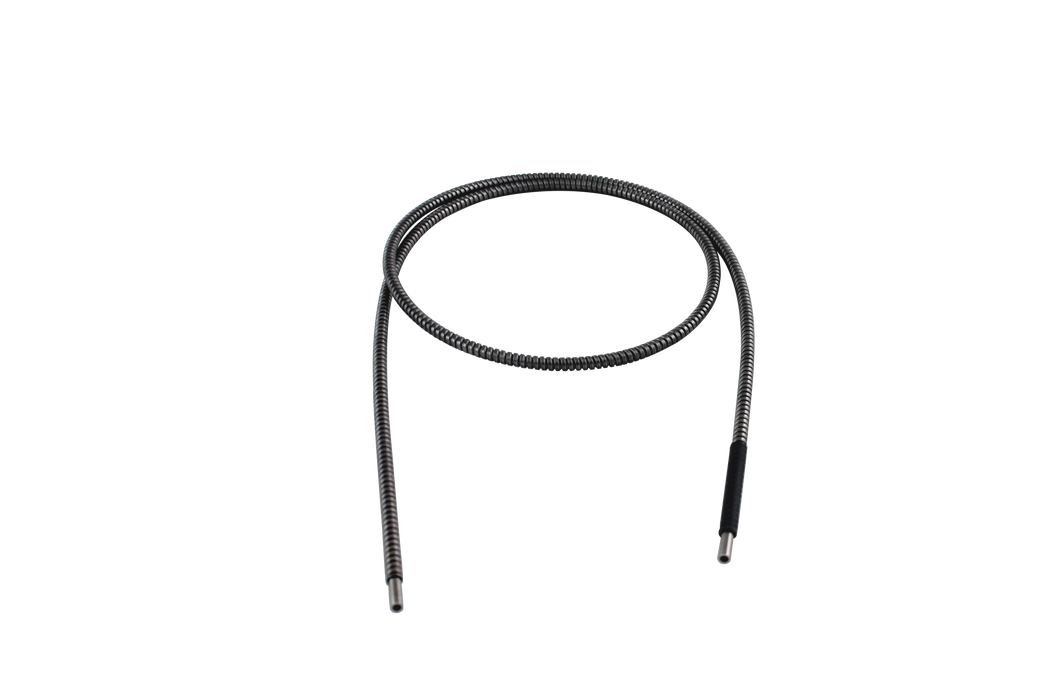

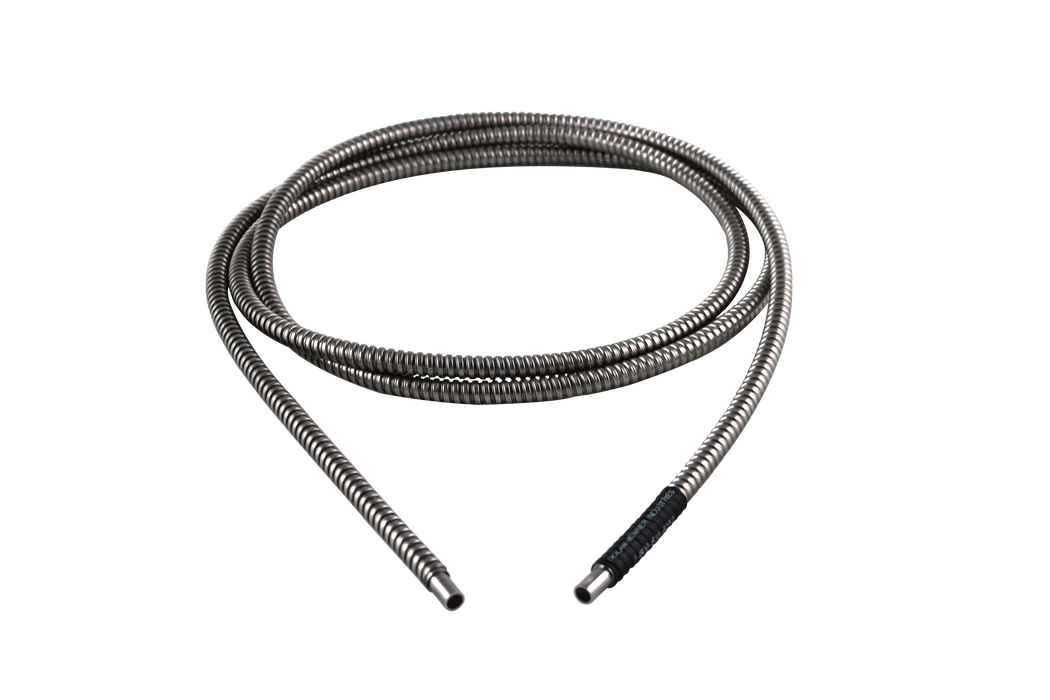

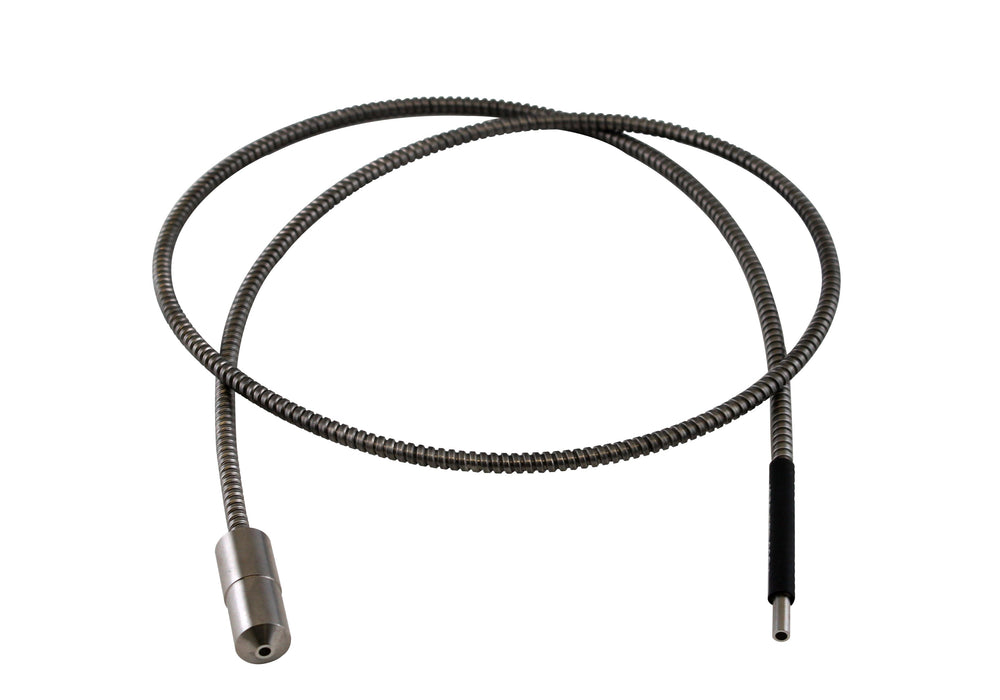

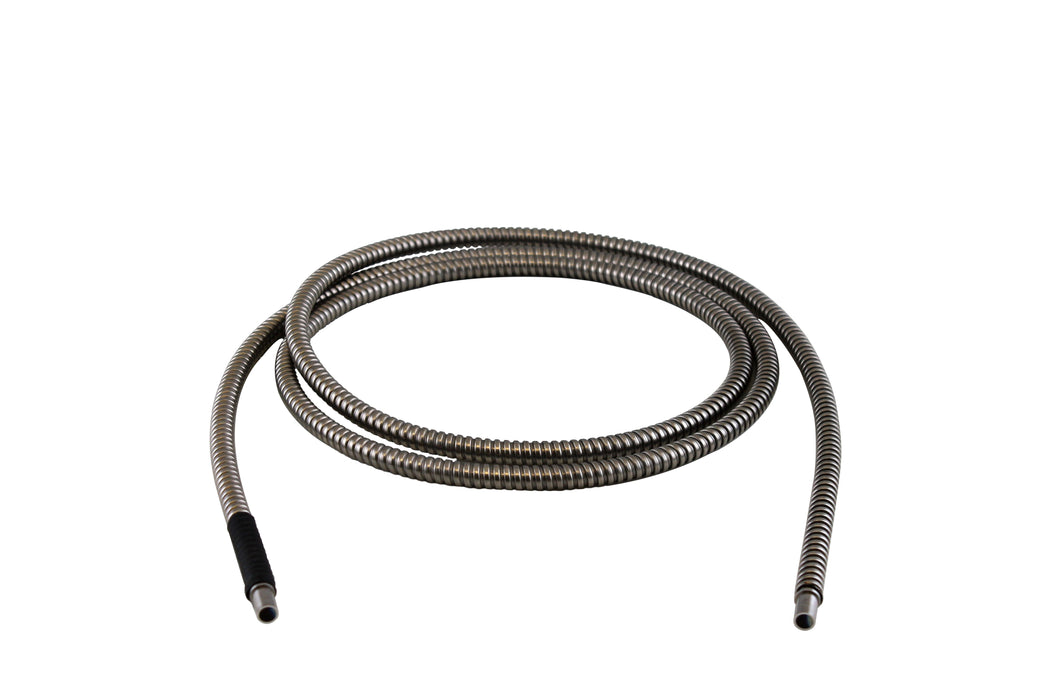

• "BX8" Type designates Single flexible cable assembly, Stainless steel sheathing, .125 diameter bundle of fiber.

• Individual Fiber Diameter: 0.002 in. (0.050mm)

• Fiber Material: Borosilicate Glass

• Numerical Aperture / Acceptance Cone:  0.55NA, 68° (nominal) @ 0.55 (nominal)

• Packing Fraction 82% (nominal) w/0.002” fiber

• Spectral Transmittance 0.4 to 2.0 micron

• Transmission Losses max. 10%/ft. at 0.6 microns
